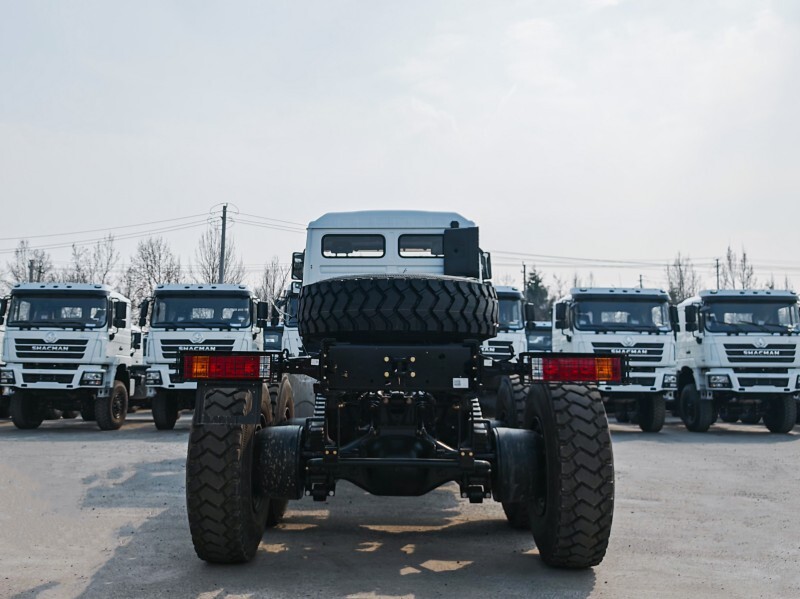

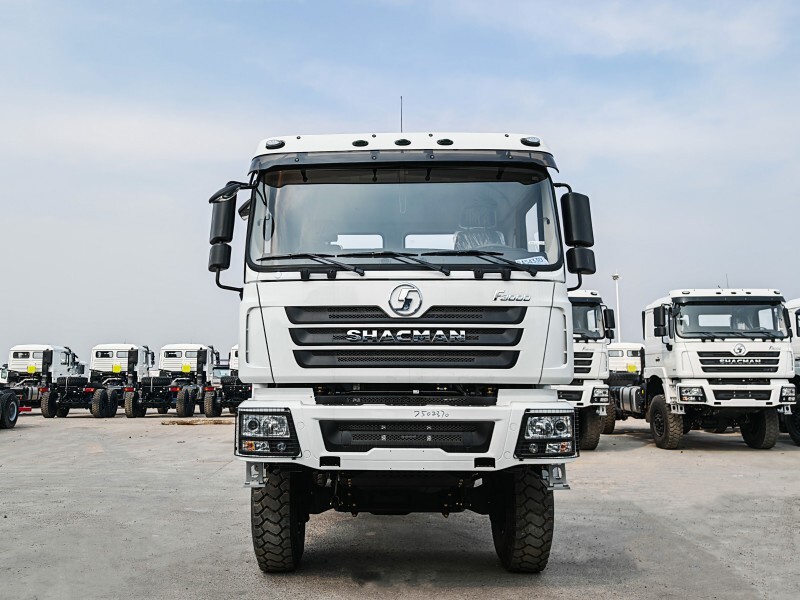

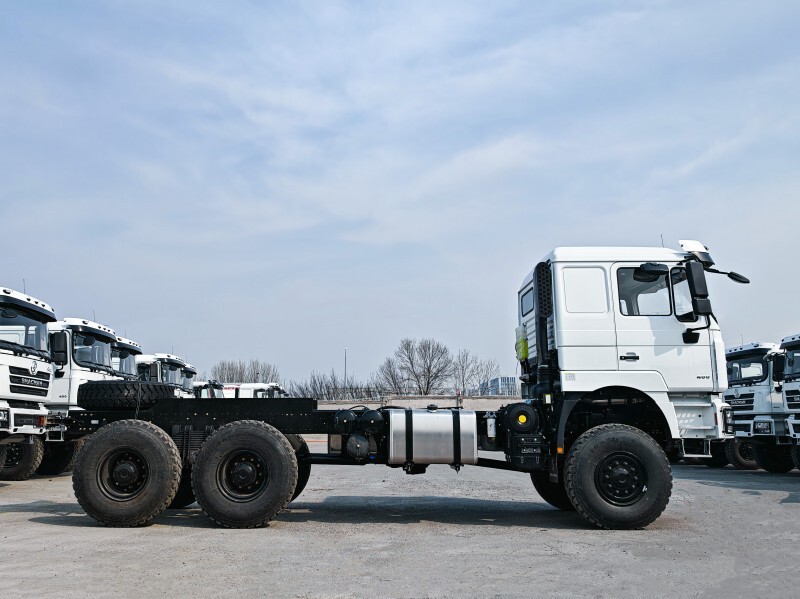

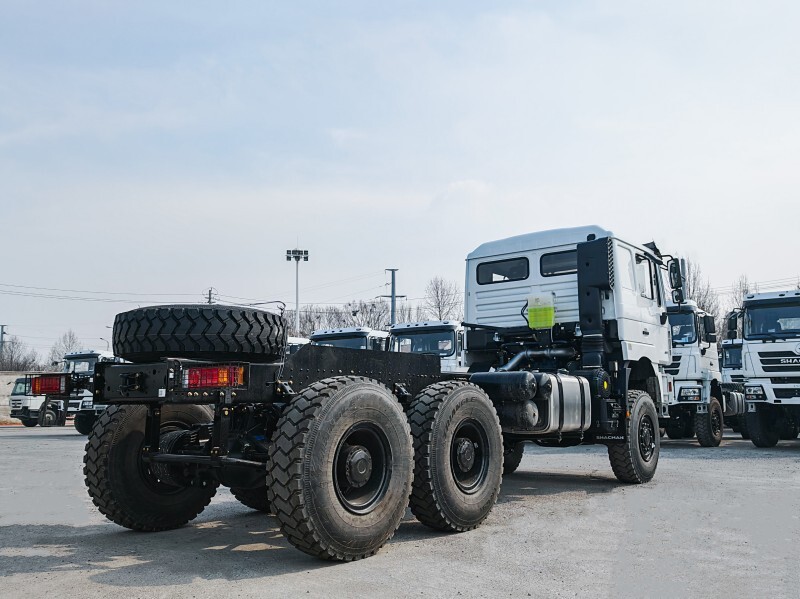

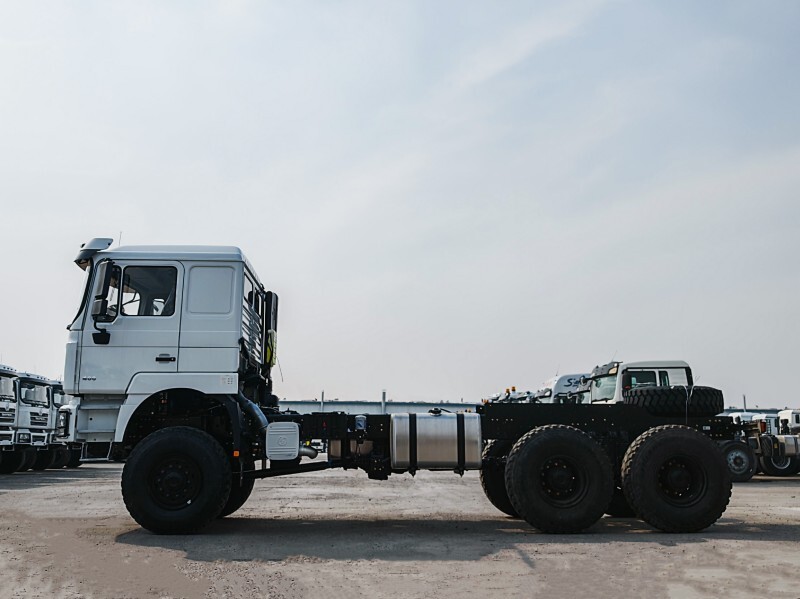

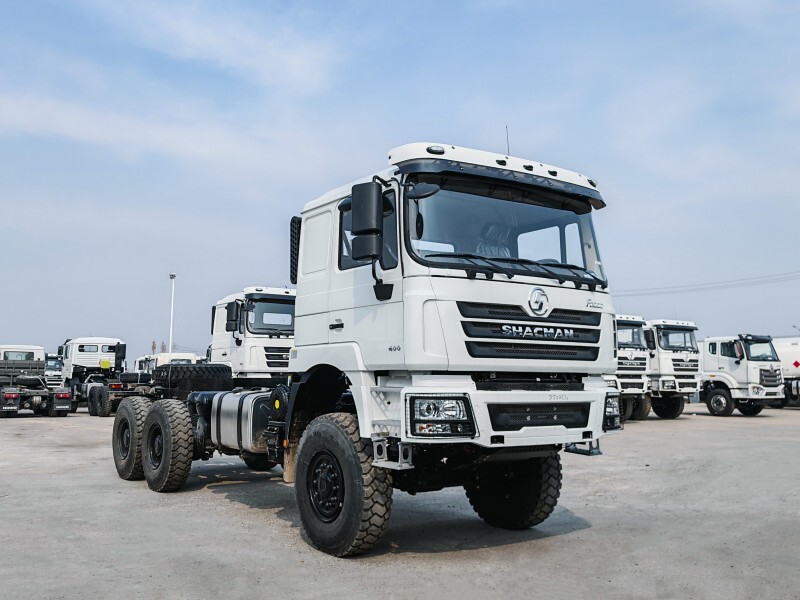

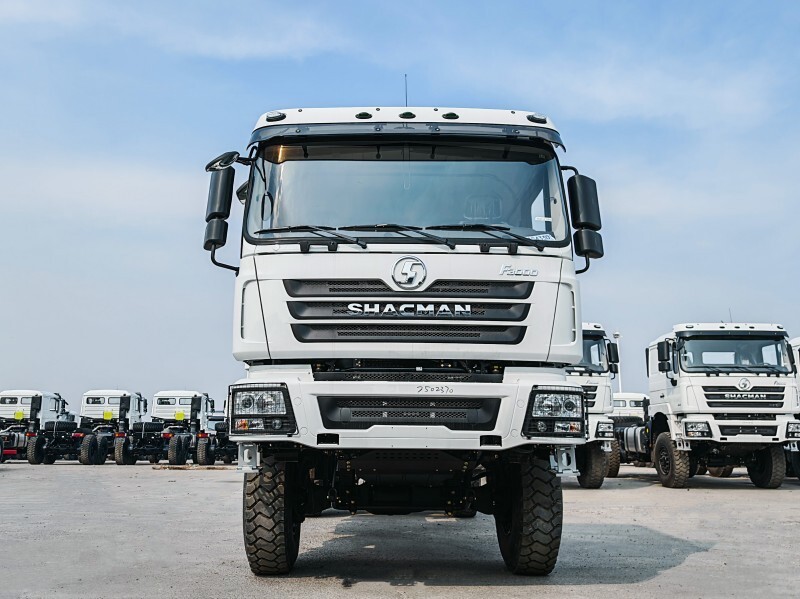

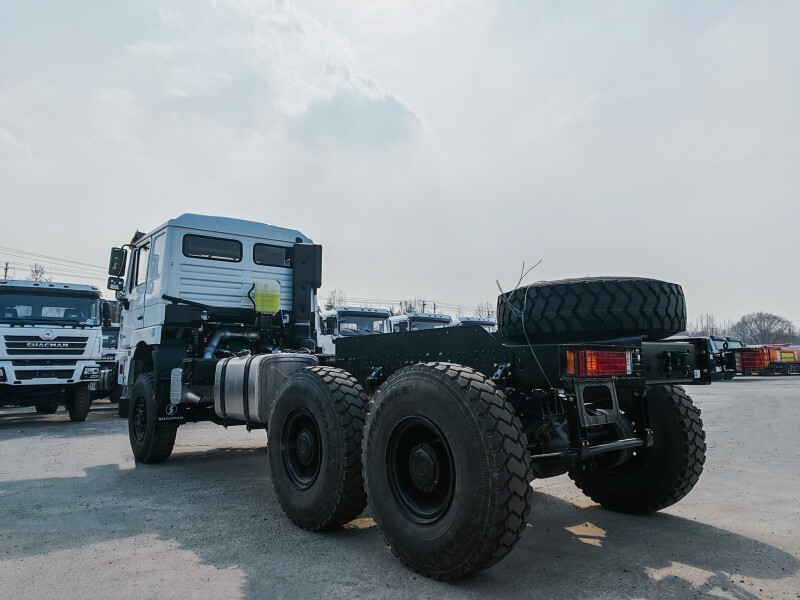

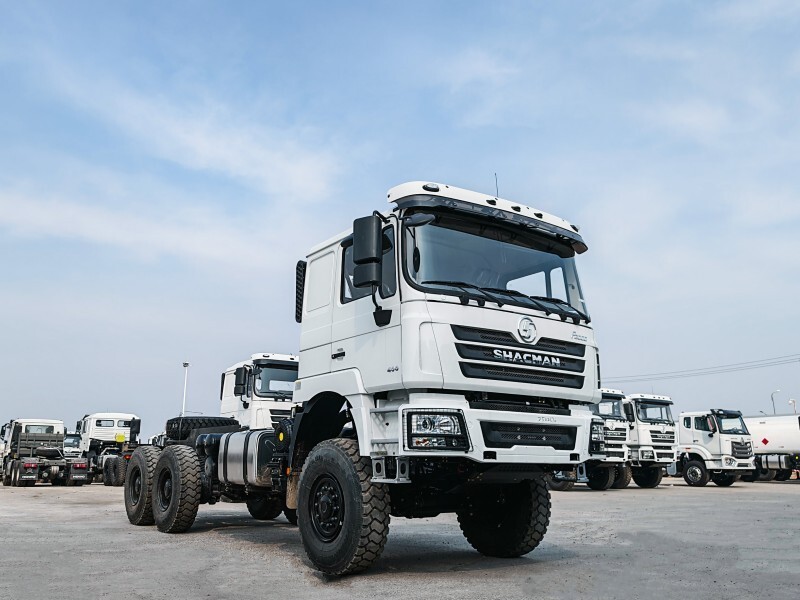

SHACMAN F3000 6×6 cargo truck chassis

The SHACMAN F3000 6×6 cargo truck chassis is engineered for extreme durability, unmatched versatility, and superior performance in demanding environments. Designed to tackle heavy-duty transportation challenges, this robust chassis is ideal for construction, mining, military logistics, and off-road cargo operations where reliability and power are non-negotiable.

WhatsApp: 008613385325337

E-mai: sales@globalshacman.com

Message

download product manual

Specifications

Product Details

Model			SX1255JU435
Drive type			6×6
GVW(kg)			35000
Max. speed (km/h)			85
Wheel base (mm)			4375+1400mm
Engine	Brand		WEICHAI
	Model		WP12.400E201 EURO III
	Rated output power		400hp
	Max.torque		1780N.m
	Displacement(L)		11.596L
Fuel tank capacity (L)			400L+400L aluminum alloy fuel tank parallel connection
Tyre			14.00R20 radial tube tyre
Transmission	Model		FAST 10JSD180- Fuller technology
Front axle			MAN 9T front axle
Driving axle			MAN 16T×2 double reduction driving axle 5.262
Steering			ZF technology（right-hand drive）
Frame			850×300(8+7)
Suspension悬架		Front Suspension	Multi leaf springs
		Rear Suspension	Multi leaf springs
Others			Offroad 6x6 cargo chassis F3000 extended flat-top cab truck Aurora white Electronic automatic constant temperature air conditioner Domestic clutch Oil bath air filter Domestic steering gear SHACMAN Telematics (without screen) 165Ah maintenance-free battery Manual flip Three-level boarding pedal Metal bumper Electric window shaker Hydraulic main seat Ordinary rearview mirror Taillight protection grille Water tank protection grille Cab hydraulic suspension Headlight protection grille Hazard warning light 1 Reversing buzzer Battery box anti-theft Fuel tank cover anti-theft Oil pan protection grille 8kg fire extinguisher Rear overhang specified 1000mm ZQC2000 transfer case SHACMAN logo All English logo Enhanced version Carriage type: cargo on sideboard Large box color: white
Body Specification			590025501650mm bottom 5 side 2

Tough as steel

Launched in 2009, the F3000 series has established itself as a paragon of reliability in the heavy-duty truck industry. Engineered with technology derived from MAN, the F3000 series exemplifies a harmonious blend of robustness and power, designed to meet and exceed the rigorous demands of any task. Its unwavering performance in the most challenging environments underscores its reputation as a dependable workhorse.

Withstand the test of time

Launched in 2009, the F3000 series has established itself as a paragon of reliability in the heavy-duty truck industry. Engineered with the most reliable technologies, the F3000 series exemplifies a harmonious blend of robustness and power, designed to meet and exceed the rigorous demands of any task. Its unwavering performance in the most challenging environments underscores its reputation as a dependable workhorse.

Perfect for any project

The F3000's resilience is matched by its adaptability, proving to be the quintessential asset for overseas engineering projects. With a formidable presence in the international market, it has garnered an unparalleled volume of sales, a testament to its global acceptance and preference. The F3000 series is not just a vehicle; it’s a trusted partner, delivering consistent performance that has captivated operators worldwide.

Go where never before

Its versatility is evident in its ability to navigate diverse terrains with ease, whether it’s long-distance hauls or navigating through adverse road conditions. The F3000 series stands as a beacon of toughness, capable of carrying substantial payloads, which is why it remains the top choice for professionals seeking a reliable and rugged solution for their transportation needs.

No surface is too rough
