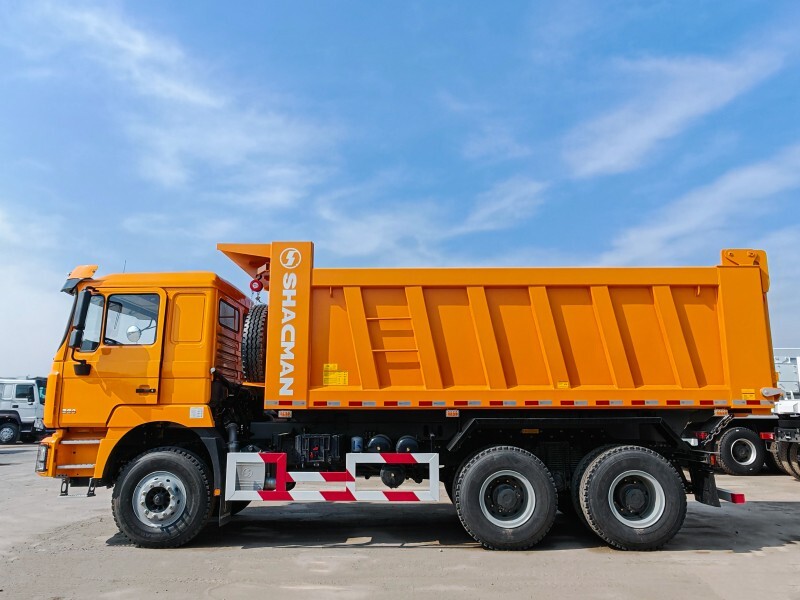

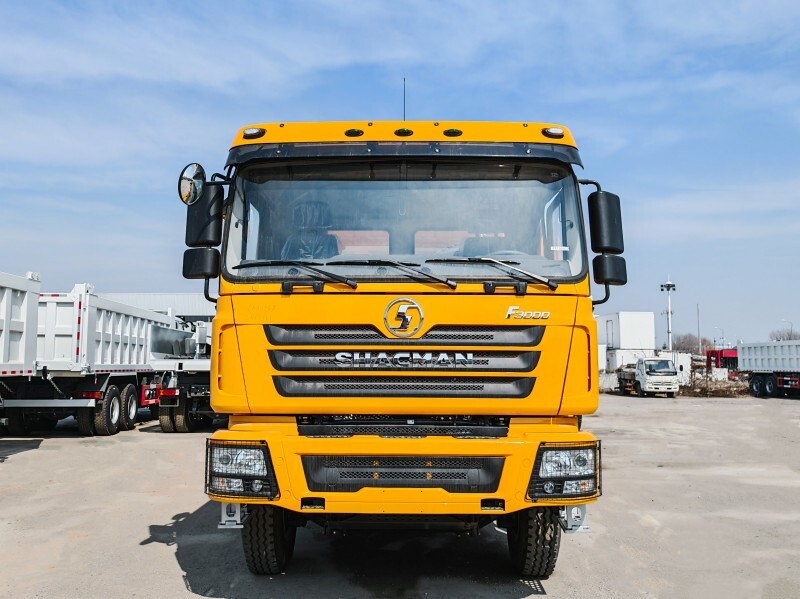

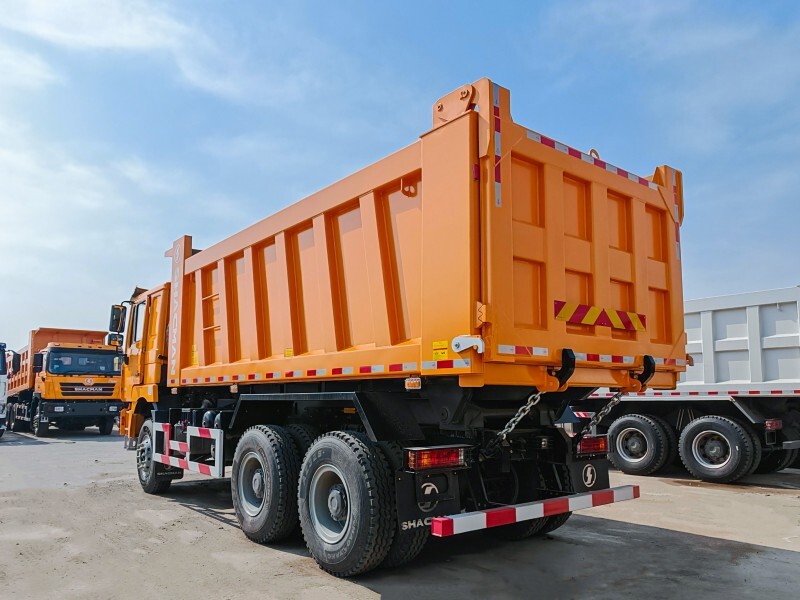

SHACMAN F3000 6×4 380 HP DUMP TRUCK

The SHACMAN F3000 6×4 380 HP Dump Truck is a rugged, high-performance workhorse designed to excel in heavy-load hauling, construction, and mining operations. Combining robust engineering with fuel efficiency and operator comfort, this dump truck is built to tackle demanding terrain, maximize productivity, and withstand the toughest job site challenges.

WhatsApp: 008613385325337

E-mai: sales@globalshacman.com

Message

download product manual

Specifications

Product Details

Model			SX3255DT384
Drive type			6×4
GVW(kg)			50000
Max.speed (km/h)			75
Wheel base (mm)			3775+1400
Engine	Brand		WEICHAI
	Model		WP10.380E22 EURO II
	Rated output power		380hp
	Max.torque		1600N.m
	Displacement(L)		9.726L
Fuel tank capacity (L)			400L

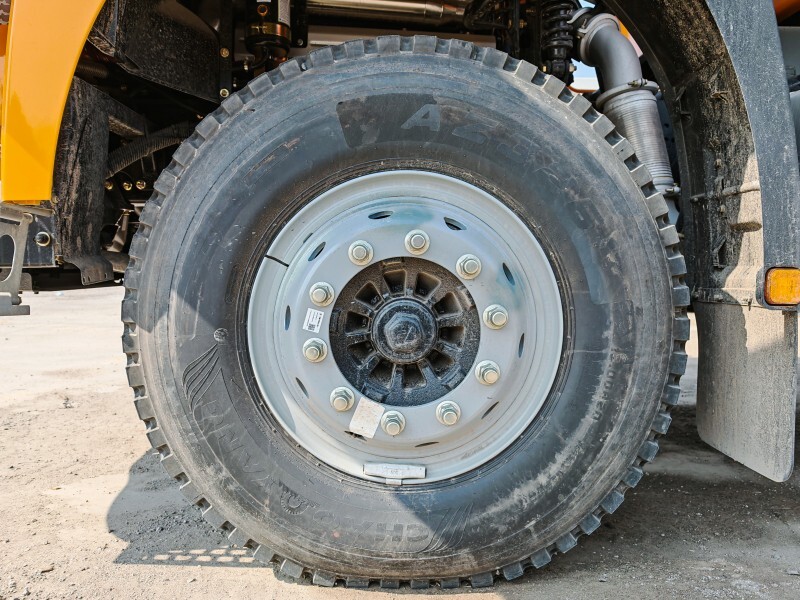

Tyre			12.00R20 radial tire 10+1
Transmission	Model		FAST 10JSD180--QH50 Fuller technology
Front axle			MAN 9.5T front axle 9.5tMAN
Driving axle			MAN 16T×2 double reduction driving axle 5.92
Steering			ZF technology（right-hand drive）
Frame			850×300(8+7)
Suspension		Front Suspension	Multi leaf springs
		Rear Suspension	Multi leaf springs

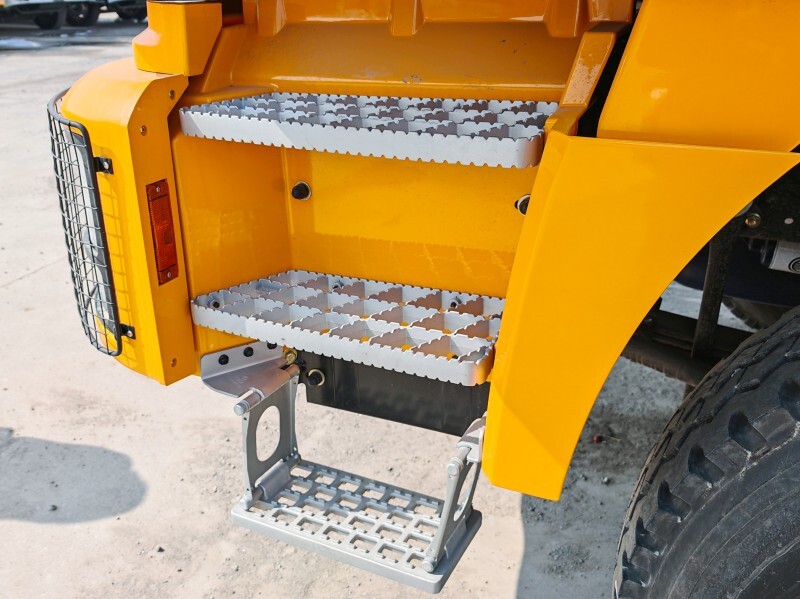

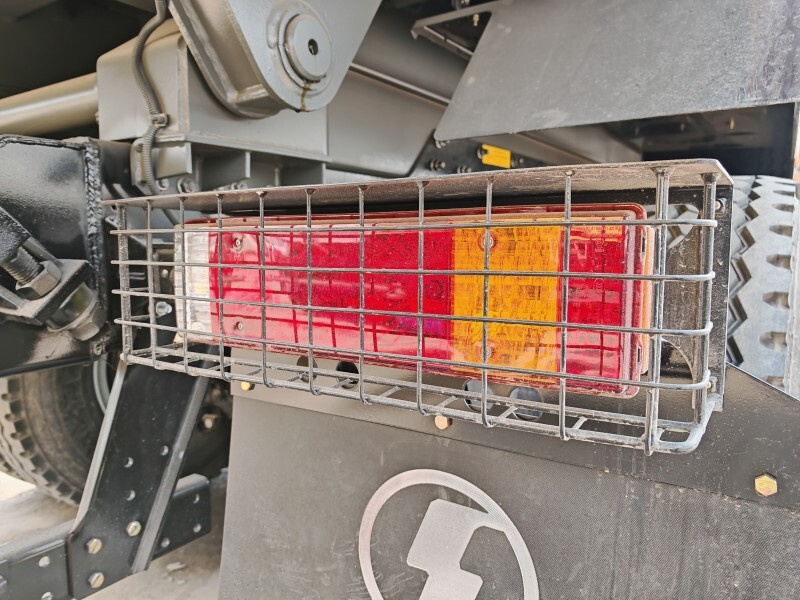

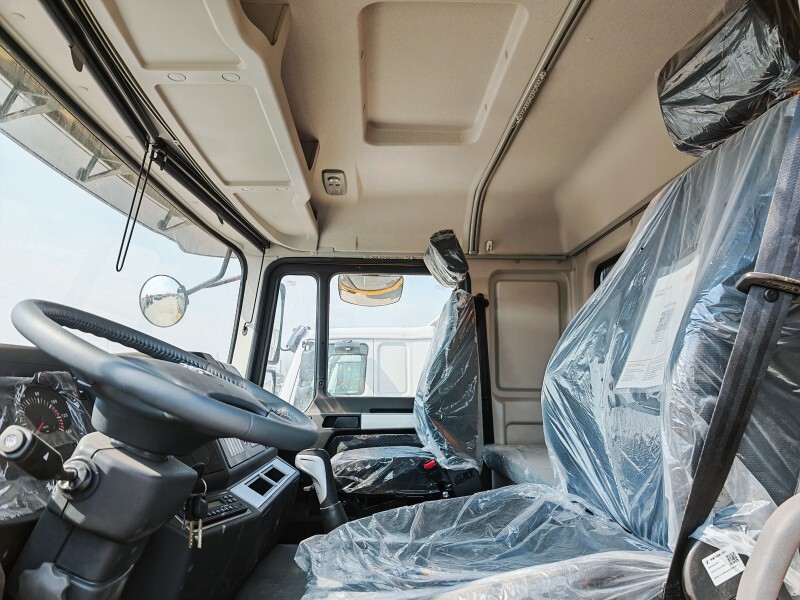

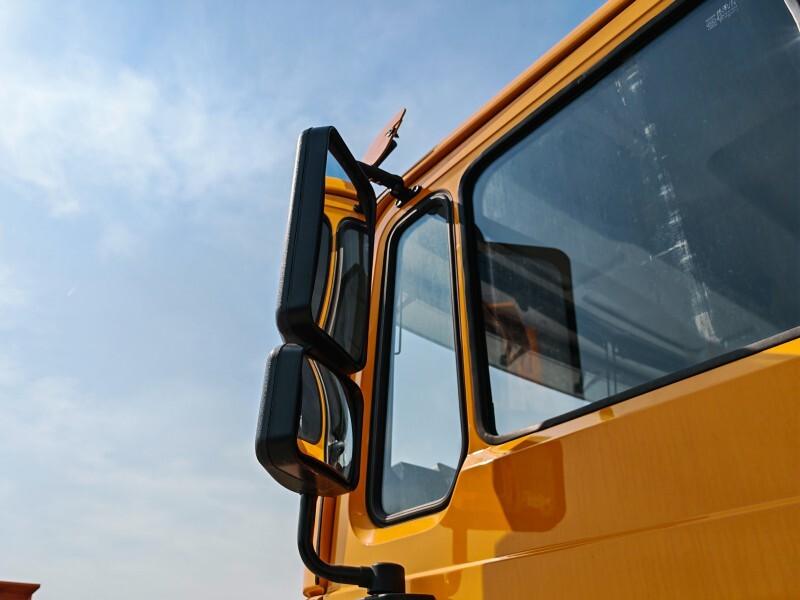

Others			F3000 medium-length flat-top cab without top deflector dump truck Duke yellow (ordinary paint) Electronic automatic constant temperature air conditioner Electric window roller Hydraulic main seat Single sleeper Ordinary rearview mirror Domestic clutch Oil bath air filter Aluminum water tank Ordinary exhaust Domestic steering gear Ordinary steering wheel 165Ah maintenance-free battery Manual flip Three-level boarding pedal Metal bumper-with light guard net Left front traction pin Taillight protection grille Water tank protection grille Front stabilizer bar SHACMAN logo All English logo Iron gas tank Reversing buzzer Telescopic shaft control Tail beam lighting (with protection grille) Battery box anti-theft Enhanced version Cylinder brand: domestic Large box type: diagonal ribs Large box color: Duke yellow

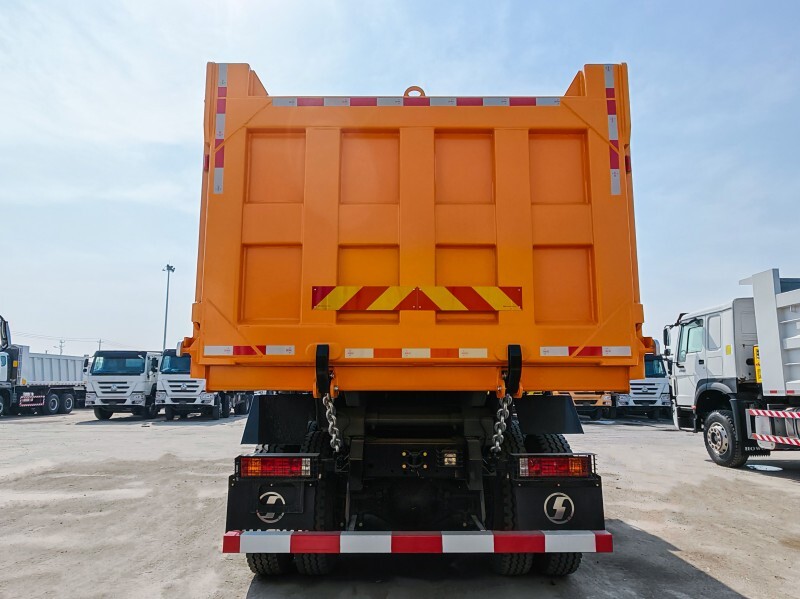

Body Specification			5600×2300×1500 bottom 8 side 6 middle lifting

Tough as steel

Launched in 2009, the F3000 series has established itself as a paragon of reliability in the heavy-duty truck industry. Engineered with technology derived from MAN, the F3000 series exemplifies a harmonious blend of robustness and power, designed to meet and exceed the rigorous demands of any task. Its unwavering performance in the most challenging environments underscores its reputation as a dependable workhorse.

Withstand the test of time

Launched in 2009, the F3000 series has established itself as a paragon of reliability in the heavy-duty truck industry. Engineered with the most reliable technologies, the F3000 series exemplifies a harmonious blend of robustness and power, designed to meet and exceed the rigorous demands of any task. Its unwavering performance in the most challenging environments underscores its reputation as a dependable workhorse.

Perfect for any project

The F3000's resilience is matched by its adaptability, proving to be the quintessential asset for overseas engineering projects. With a formidable presence in the international market, it has garnered an unparalleled volume of sales, a testament to its global acceptance and preference. The F3000 series is not just a vehicle; it’s a trusted partner, delivering consistent performance that has captivated operators worldwide.

Go where never before

Its versatility is evident in its ability to navigate diverse terrains with ease, whether it’s long-distance hauls or navigating through adverse road conditions. The F3000 series stands as a beacon of toughness, capable of carrying substantial payloads, which is why it remains the top choice for professionals seeking a reliable and rugged solution for their transportation needs.

No surface is too rough
