Name: SHACMAN H3000S 6×4 tractor truck
SKU: -1



English



PRODUCT



Location: HOME - PRODUCT - Tractor Truck - SHACMAN H3000S 6×4 tractor truck

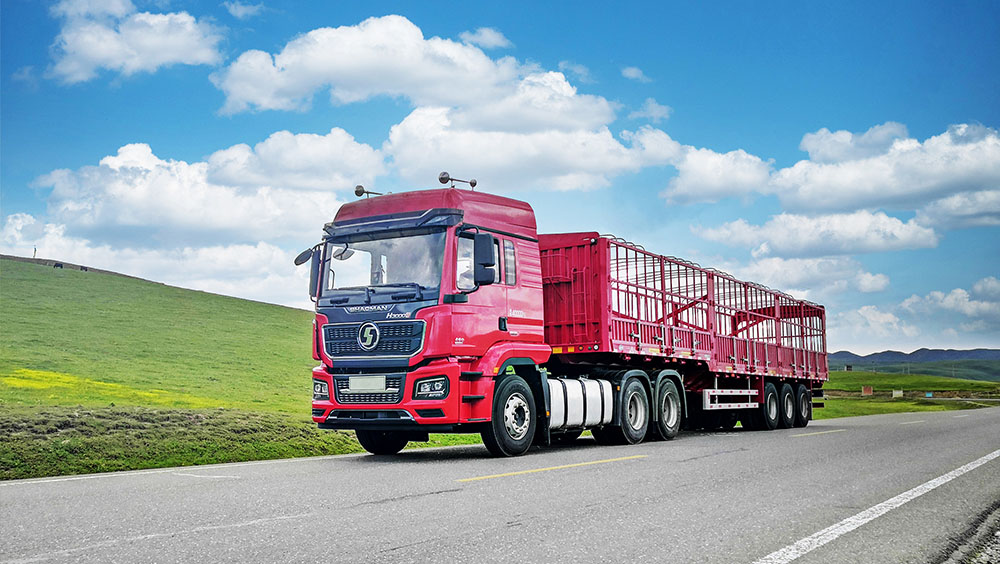

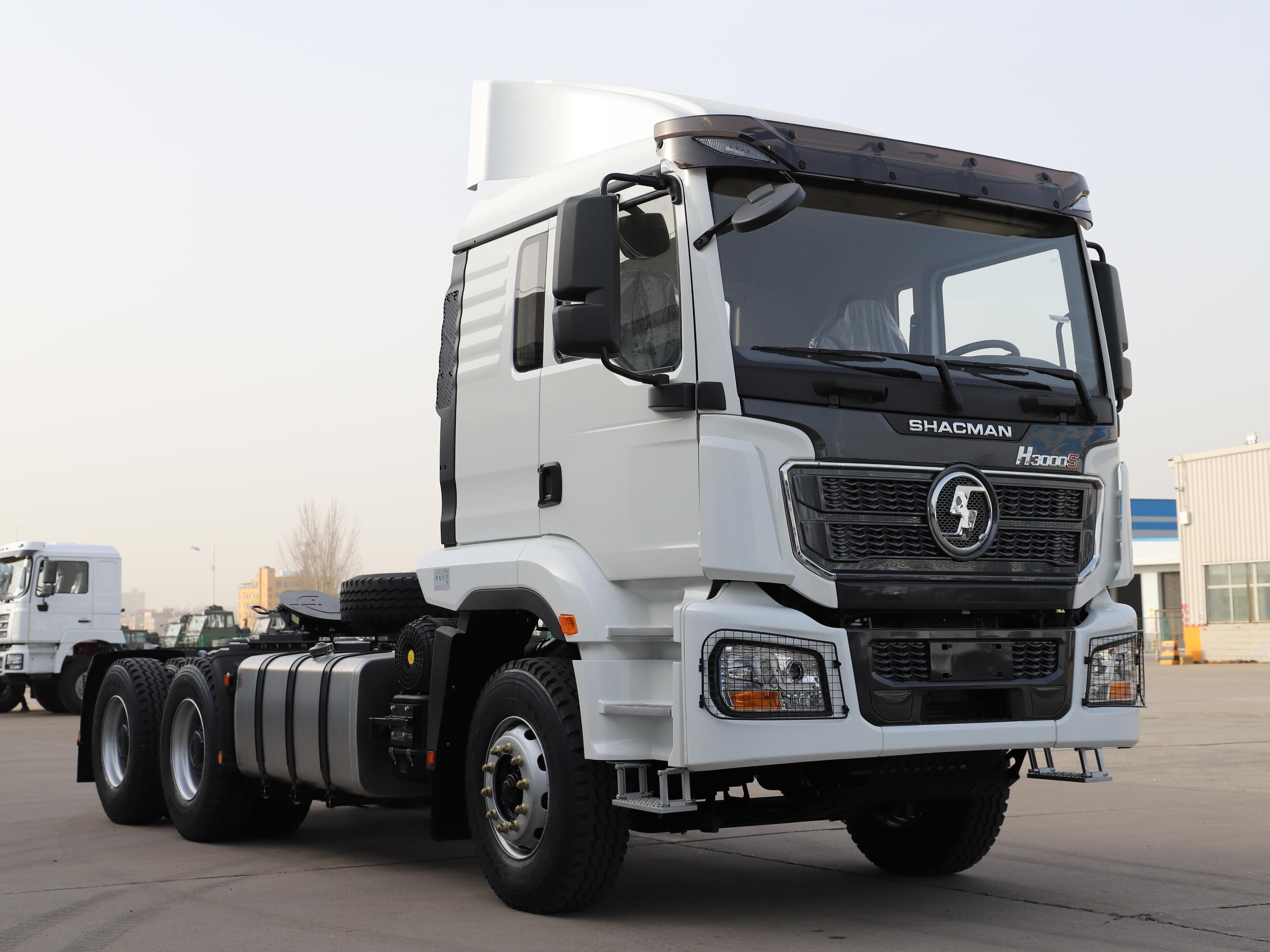

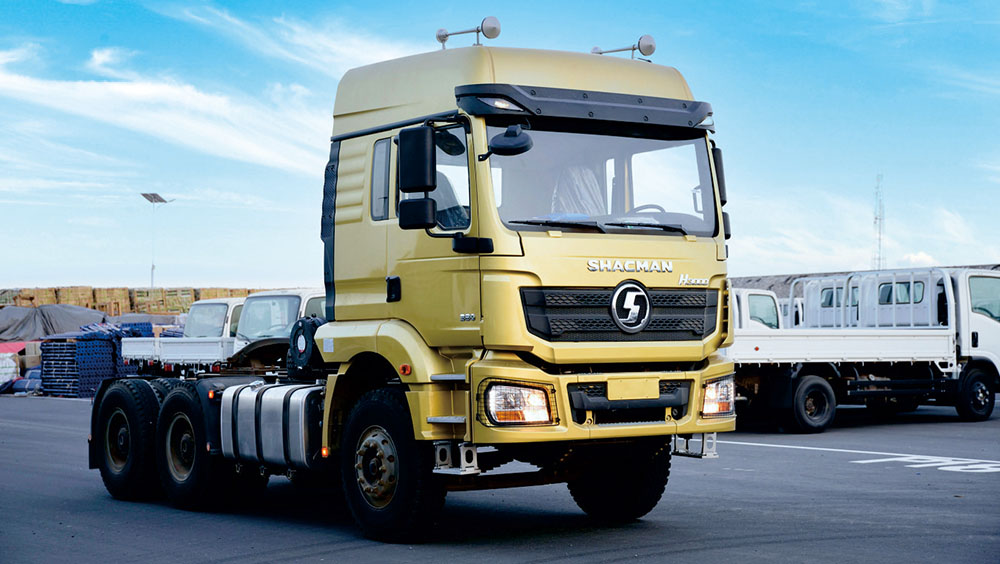

SHACMAN H3000S 6×4 tractor truck

The H3000 narrow - body cab is crafted with precision, designed specifically for intercity transportation and construction - related tasks. Its outstanding handling capabilities are a game - changer. In the bustling and often congested urban environments, it can move around with ease. This not only makes the driving process smoother but also greatly enhances work efficiency. As a result, it guarantees that transportation jobs are carried out consistently and productively, whether it's shuttling goods between cities or supporting construction projects on - site.

WhatsApp: 008613385325337

E-mai: sales@globalshacman.com

Message

download product manual

Specifications

Product Details

Main specifications of SHACMAN H3000 Tractor Truck 4X2

Transport type		Commodity transportation logistics (Standard transport)
Logistics type		Food, fruit, wood, household appliances and other department stores
Drive		4X2
Max weight(t)		≤50
Max speed(km/h)		100
Loaded speed		60~75
Vehicle model		SX4185HL361
Engine		WP7.270E31
Emission standard		Euro II
Displacement		7.14L
Rated Output		199KW
Max. torque		1100N.m
Transmission		RTD11509C
Clutch		430
Frame		850X270 (8+5)
Front axle		MAN 7.5T
Rear axle		13T STR4.266
Tire		12.00R22.5
Front Suspension		Little leaf springs
Rear Suspension		Little leaf springs
Battery		165Ah
Fuel		Diesel
Capacity of the fuel tank		400L
Dimensions		6080X2490X3560
Wheelbase		3600
The fifth wheel		90 type(lightweight)
Approach/departure angle		22/66
Max grad ability		20
Cab	Type	MAN H3000,Lengthened Flat Roof
	Equipment	♦ Rear window♦ Sun roof♦ Four point air suspension♦ Air cushioned drivers seat♦ radio with Mp3 player♦ Automated air conditioning
	Optional	♦ Central locking♦ Full vehicle WABCO valve

Main specifications of SHACMAN H3000 Tractor Truck 6X4

Transport type		Commodity transportation logistics (Standard transport)
Logistics type		Food, fruit, wood, household appliances and other department stores
Drive		6X4	6X4			6X4
Max Weight(t)		≤70	≤55			≤90
Max Speed		110	95			95
Loaded speed(km/h)		50~70	50~75			40~60
Vehicle model		SX4255HT324	SX4255HT324C			SX4255HU324
Engine		WP10.380E22	ISM385			WP12.400E201
Emission standard		Euro II	Euro III			Euro II
Displacement		9.726L	10.8L			11.596L
Rated Output		280KW	283KW			294KW
Max. torque		1460N.m	1835N.m			1920N.m
Transmission		12JSD200T-B	12JSD200T-B			12JSD200T-B
Clutch		430	430			430
Frame		850X270 (8+4)		850X270 (8+4)		850X300 (8+5)
Front axle		MAN 7.5T		MAN 7.5T	MAN 7.5T
Rear axle		13T STR3.866		13T STR3.866	13T STR4.266
Tire		12.00R20		12.00R22.5	12.00R20
Front Suspension		Little leaf springs
Rear Suspension		Little leaf springs
Battery		165Ah		180Ah	165Ah
Fuel		Diesel
Capacity of the fuel tank		400L		400L	600L
Dimensions		6860X2490X3710
Wheelbase		3175+1350		3175+1350	3175+1400
The fifth wheel		90 type(lightweight)
Approach/departure angle		22/66
Max grad ability		20
Cab	Type	MAN H3000,Lengthened Flat Roof
	Equipment	♦ Rear window♦ Sun roof♦ Four point air suspension♦ Air cushioned drivers seat♦ radio with Mp3 player♦ Automated air conditioning
	Optional	♦ Central locking♦ Full vehicle WABCO valve

Work from anywhere

The H3000 narrow body cab is meticulously engineered for intercity transportation and construction applications. Its exceptional maneuverability significantly boosts productivity by facilitating seamless navigation through urban landscapes, thereby ensuring the consistent and efficient completion of transport duties.

440HP of robust power

The H3000 is powered by engines from WEICHAI and CUMMINS, renowned global leaders in diesel engine manufacturing, offering up to 440HP of robust power.

FAST gearbox

FAST gearbox, provided by the world's preeminent transmission supplier, ensures an optimal balance between economic fuel consumption and dependable performance.

HANDE axle

HANDE axle incorporates state-of-the-art technology, boasting exceptional load-bearing capabilities and high-torque output, underpinning the vehicle’s strong performance.

Built to work, Engineered to last
